Mares Prime Explorer BCD Dive Package

All packed and ready to go

If you’re just getting started and you need need dive gear with
all the essentials, the Mares Prime Explorer BCD Dive
Package is bundled and ready to go. This package includes
a BCD (you can select your own size), Regulator, Octopus and
Pressure Gauge. No need to look for individual components.

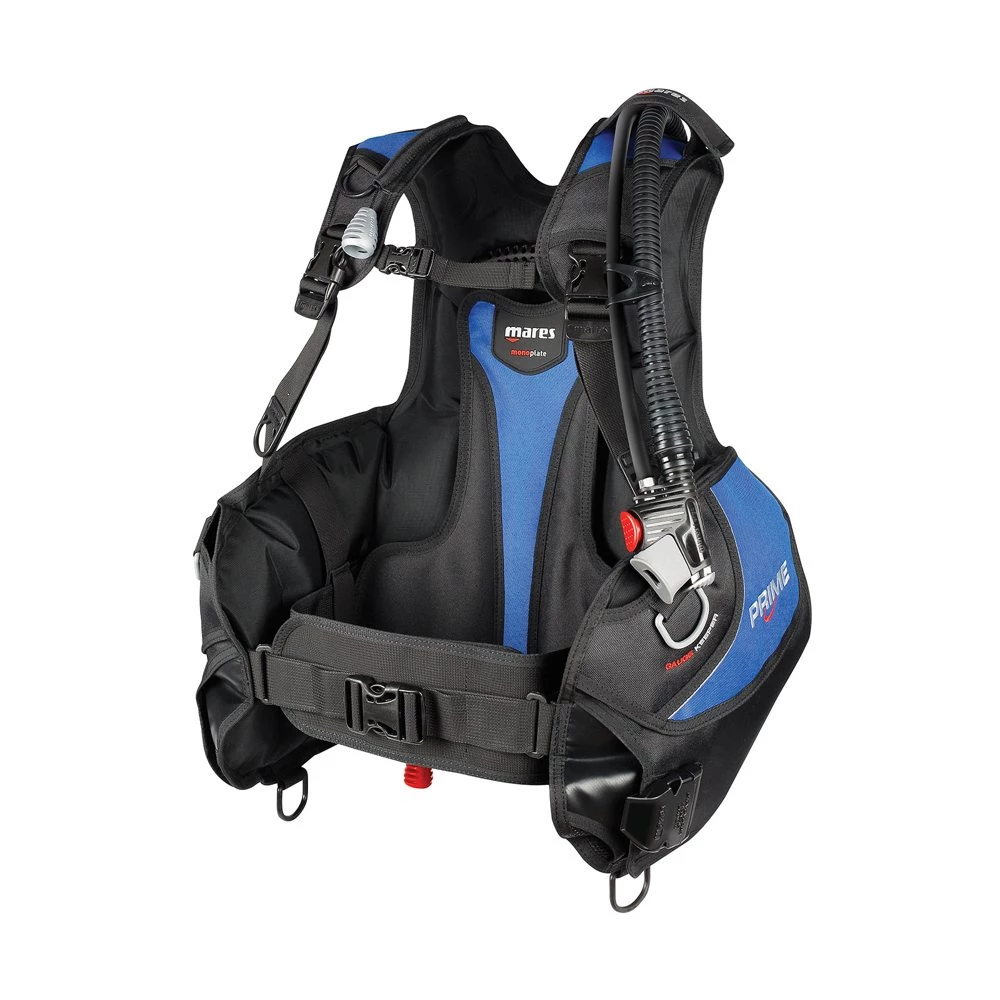

The BCD
Ideal for those who want to get started with their diving
adventure, the Mares Prime BCD offers unparalleled
comfort, security and excellent lift capacity for an even more
enjoyable dive.

Classic Bladder
Air-cell enveloping diver on the sides and back. High lift capacity
and very comfortable position on the surface characterize this
bladder design.

Ergo Inflator
The standard inflation and deflation control device used in
sanctioned training programs. Intuitive use and secure grip.

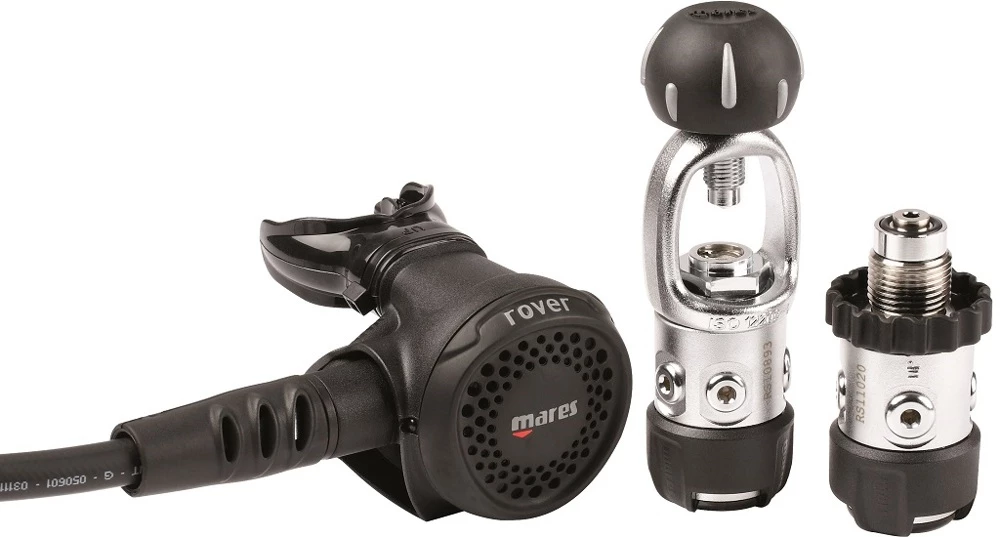

The First Stage Regulator
The Mares Rover 2S INT Regulator is the ideal dive
regulator for personal or dive centre rental, the Rover 2S is easy
to maintain, with a sandblasted finish to increase scratch
resistance.

R2S First Stage
The Rover 2S is equipped with the new R2S first stage. Brand-new
first stage in nickel- and chrome-plated brass that stands out from
previous versions for its size and lower weight. The first stage is
complete with a shockproof guard, designed to house a chip that
will manage computerised information for equipped Diving Centres.
This is made possible by innovative technical solutions that do not
alter the internal components. The piston technology guarantees
exceptional reliability under all usage conditions, paired with
extremely straightforward maintenance. Thanks to these measures, it
was possible to fit both the INT and DIN versions with conical
filters that ensure greater filtering power and extended usage
periods. It is equipped with a preferential intermediate pressure
DFC port for the main second stage hose, three other low-pressure
ports, and one high-pressure port. All ports have been rearranged
in order to offer better positions for the hoses.

Mesh Grid
Patented design which reduces the impact of water flow onto the
second stage diaphragm, thus eliminating free flows even in strong
currents.

VAD – Vortex Assisted Design
The air bypass tube delivers air to the mouthpiece creating a
swirling vortex with a low pressure area in the center that keeps
the diaphragm down during inhalation, for very sensitive and easy
breathing at all depths.

DFC – Dynamic Flow Control
Minimises intermediate pressure drop during inhalation thus
maximising gas delivery, especially under extreme conditions.

Fluid Dynamic Deflector
Receives and properly directs the airflow from the bypass tube to
the mouthpiece.

Ultralight Technopolymer
Abrasion resistant and affordable, ideal for diving in warm and
moderate water temperatures.

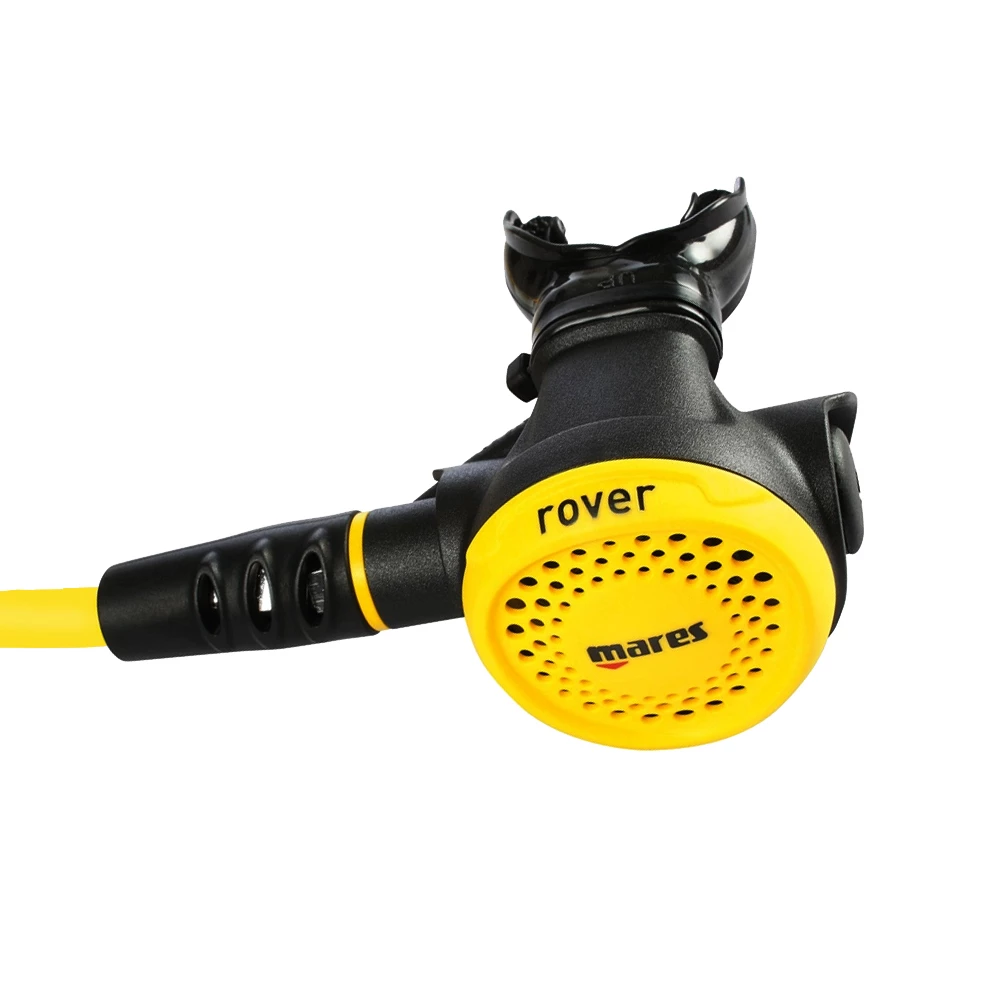

The Second Stage Regulator
The Mares Rover Second Stage Octopus Dive
Regulator is a medium-sized octopus regulator made of
technopolymer. It features a cover made of soft material so that
the purge button is easy to push. With a VAD system and Fluid
Dynamic Deflector it offers natural, effortless breathing.

Mesh Grid
Patented design which reduces the impact of water flow onto the
second stage diaphragm, thus eliminating free flows even in strong
currents.

VAD – Vortex Assisted Design
The air bypass tube delivers air to the mouthpiece creating a
swirling vortex with a low pressure area in the center that keeps
the diaphragm down during inhalation, for very sensitive and easy
breathing at all depths.

Fluid Dynamic Deflector
Receives and properly directs the airflow from the bypass tube to
the mouthpiece.

Ultralight Technopolymer
Abrasion resistant and affordable, ideal for diving in warm and
moderate water temperatures.

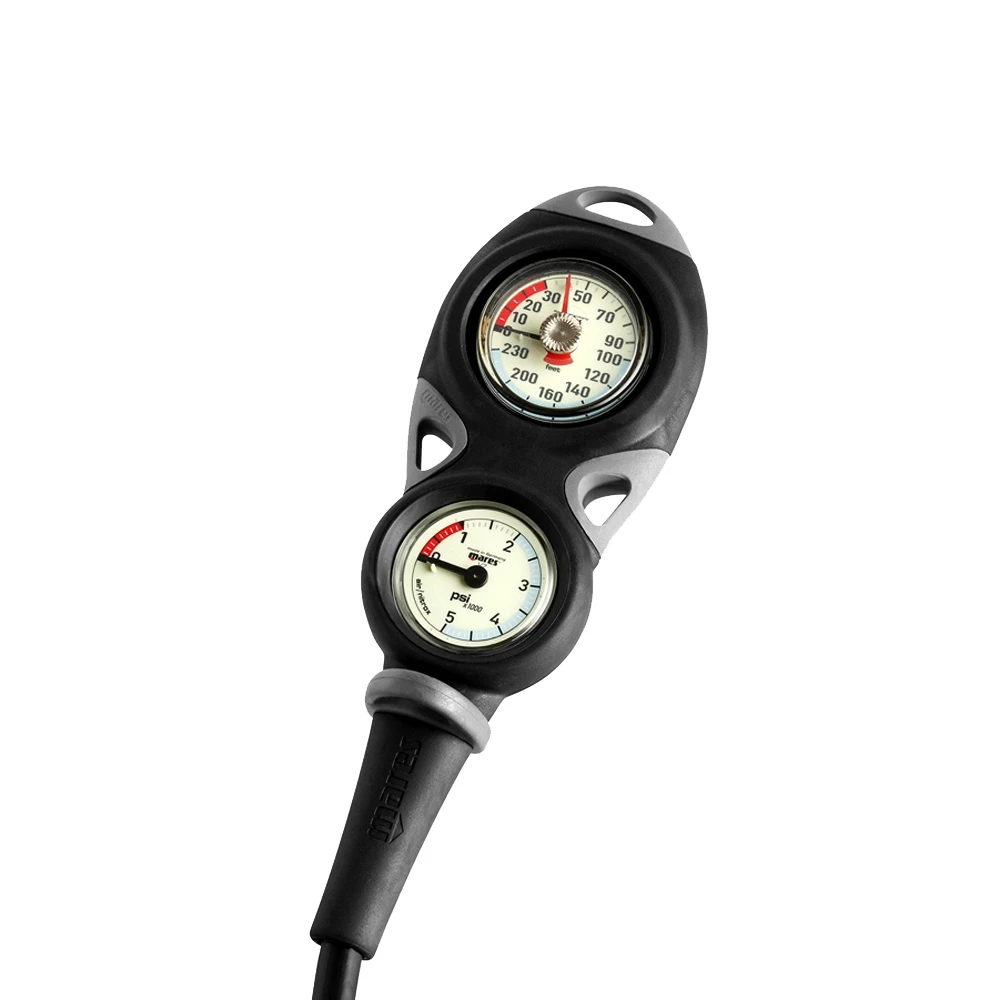

The Dive Depth and Pressure Gauge
The Mares Mission 2 Dive Depth and Pressure Gauge
is an analogue console with pressure and depth gauges that offers a
simple yet versatile option for upgrading from the analogue depth
gauge to the compact Puck capsule computer.

Mares Prime BCD Features:

• Ideal for those who want to get started with their diving
  adventure
• Standard BCD
• Excellent buoyancy and fit
• Light, strong and durable denier 420
• Stowage for octopus and pressure gauge
• Monoplate backpack
• 2 large cargo pockets
• Upgradeable integrated weight system

Mares Prime BCD Specifications:

• Material: Cordura420
• Rings: 5 x heavy-duty technopolymer D-rings
• Weight: 2.8kg (6.2lb)
• Backpack: Monoplate
• Weight system capacity: XXS-S: 4kg/9lbs, M-L:
  6kg/13lbs

Buoyancy:

Size	Buoyancy
XS	140N (14.2kg / 31.3lb)
S	150N (16kg / 35lb)
M	160N (16.3kg / 35.9lb)
L	200N (21kg / 46lb)
XL	235N (24kg / 52.9lb)

Mares Rover 2S INT Regulator Features:

• 1st stage
  Lightweight, sturdy and compact
  Piston control
  Dedicated place for rfid chip
• 2nd stage
  Vad system with fluid dynamic deflector
  Mid-size
  Mesh grid
  Rubber hose
  Oversized purge button

Mares Rover 2S INT Regulator Specifications:

• Code: 416220
• Material: Techno Polymer
• First stage: Piston
• Lightweight yoke: Yes
• High pressure ports: 1 HP 7/16′ UNF ports
• Low pressure ports: 4 LP 3/8′ UNF ports

Product Data Sheet

Mares Rover Second Stage Octopus Dive Regulator
Features:

• VAD system with fluid dynamic deflector
• Mid sized
• Mesh grid
• Rubber hose
• Oversized purge button
• Fluid Dynamic Deflector
• Ultralight Technopolymer

Mares Rover Second Stage Octopus Dive Regulator
Specifications:

• Material: Techno Polymer
• Lightweight yoke: Yes
• Metal parts: Chrome and nickel-plated brass
  Stainless steel
• Non-metal parts: High-resistance technopolymers
• Seals and diaphragms: Nitryl rubber
  Silicone rubber
• Flow rate: 2.300 l/min
• Octopus length: 100cm
• Weight (without hose): 200g
• Total weight incl hose: 385g

Mares Mission 2 Depth and Pressure Gauge
Features:
Pressure gauge:

• Brass case
• Technopolymer window
• Phosphorescent dial face

Depth gauge:

• Oil bath
• Phosphorescent dial face
• Max depth indicator
• Linear scale

Console:

• Protective rubber cover with multiple attachment
  points
