Mares Fusion 52X INT Scuba Diving Regulator

Designed for optimum breathing comfort

The Mares Fusion 52X INT Scuba Diving Regulator represents a
radical departure from any existing regulator. The bypass, has
undergone a true transformation: 77% increase in flow cross section
and double curvature to provide a smoother flow while optimising
performance. For the first time a second stage regulator is
equipped with a flow control (Twin Power), managing the delivery
rate of gas from natural breathing to power breathing. The new
valve system in the 52X delivers a 600% increase in durability even
under the most extreme conditions. Both first and second stage
feature a new satin finish making them stand out from the
crowd.

1^st Stage

• Double DFC Ports
• Pre-oriented Ports
• INT – DIN Connection
• ACT valve
• NCC Technology

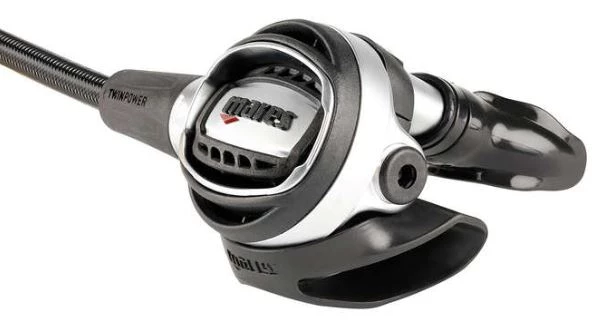

2^nd Stage

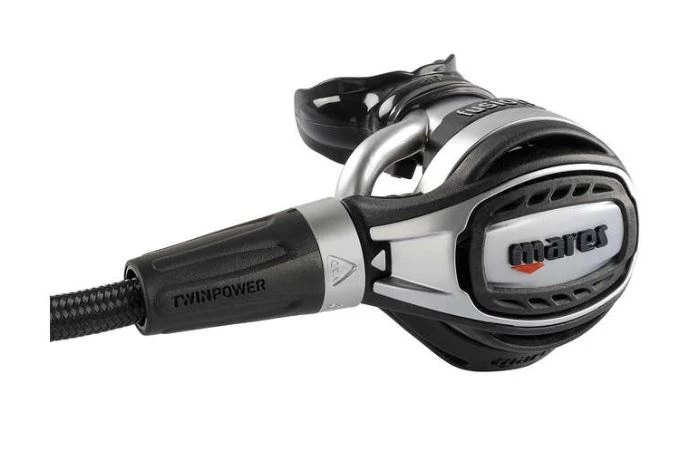

• Twin Power System

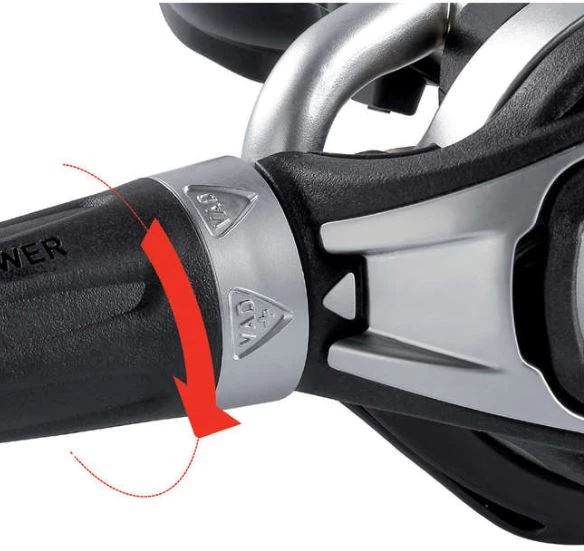

• VAD System
• Highest Air Flow
• Superflex Hose
• Wide Pivoting Purge Button

Mares Fusion 52X INT Scuba Diving Regulator Features:

• Advanced Coating Technology
• Outstanding mechanical reliability and high thermal conductivity
• Air bypass tube
• Extreme lightweight and exceptional softness
• Minimises intermediate pressure drop during inhalation
• New, flow control
• Increases cold water performance

Mares Fusion 52X INT Scuba Diving Regulator Specifications:

• Material: Metal Technology
• First Stage: Balanced Diaphragm
• HP Ports: 2 HP 7/16″ UNF ports
• LP Ports: 4 LP 3/8″ UNF ports
• First stage weight INT: 687g
• First stage weight DIN 300: 513g
• Second stage weight: 327g
• Total weight INT: 1161g
• Total weight DIN300: 984g
