Mares Epic Adj 82X INT Dive Regulator

Designed for optimum breathing comfort

Technological innovation and an exclusive design, the Mares
Epic Adj 82X INT Dive Regulator features a second stage
with twin power system and balanced-diaphragm first stage.

All Metal Technology
Outstanding mechanical reliability and high thermal conductivity
make our metal 2nd stages extremely long lasting and ideal for cold
water dives. The high thermal conductivity of metal reduces also
the dry mouth feeling during the dive.

DFC – Dynamic Flow Control
Minimises intermediate pressure drop during inhalation thus
maximising gas delivery, especially under extreme conditions.

ACT Valve – Advanced Coating Technology
The new valve in the “X” systems increases durability by an
astounding 600%, even under the most extreme conditions.

Twin Power
New, flow control manages the delivery rate of your gas, from
natural breathing to power breathing. The former is the traditional
way of breathing a Mares regulator, (VAD) while the latter (VAD+)
provides an extra push when you need it.

VAD – Vortex Assisted Design
The air bypass tube delivers air to the mouthpiece creating a
swirling vortex with a low pressure area in the centre that keeps
the diaphragm down during inhalation, for very sensitive and easy
breathing at all depths.

Mesh Grid
Patented design which reduces the impact of water flow onto the
second stage diaphragm, thus eliminating free flows even in strong
currents.

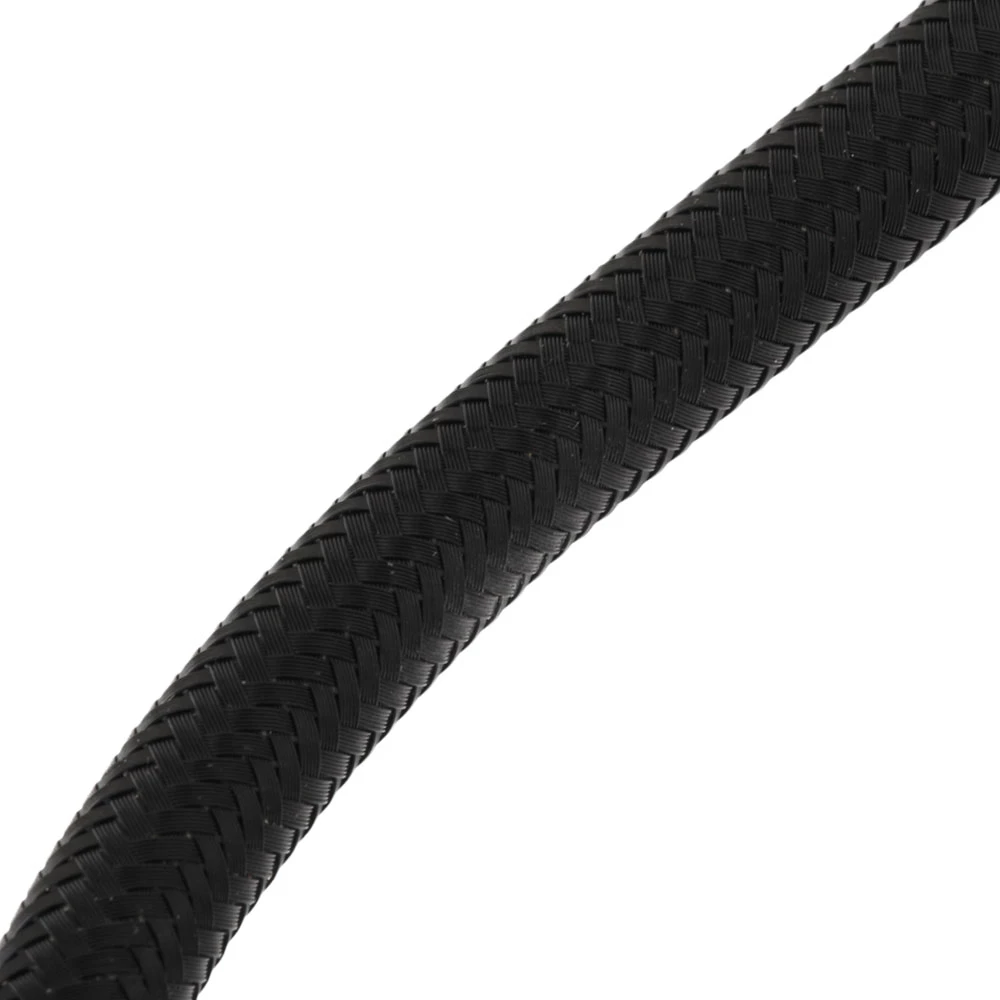

Superflex Hose
Extreme light weight and exceptional softness guarantee the maximum
freedom of movement.

Mares Epic Adj 82X INT Dive Regulator
Features:

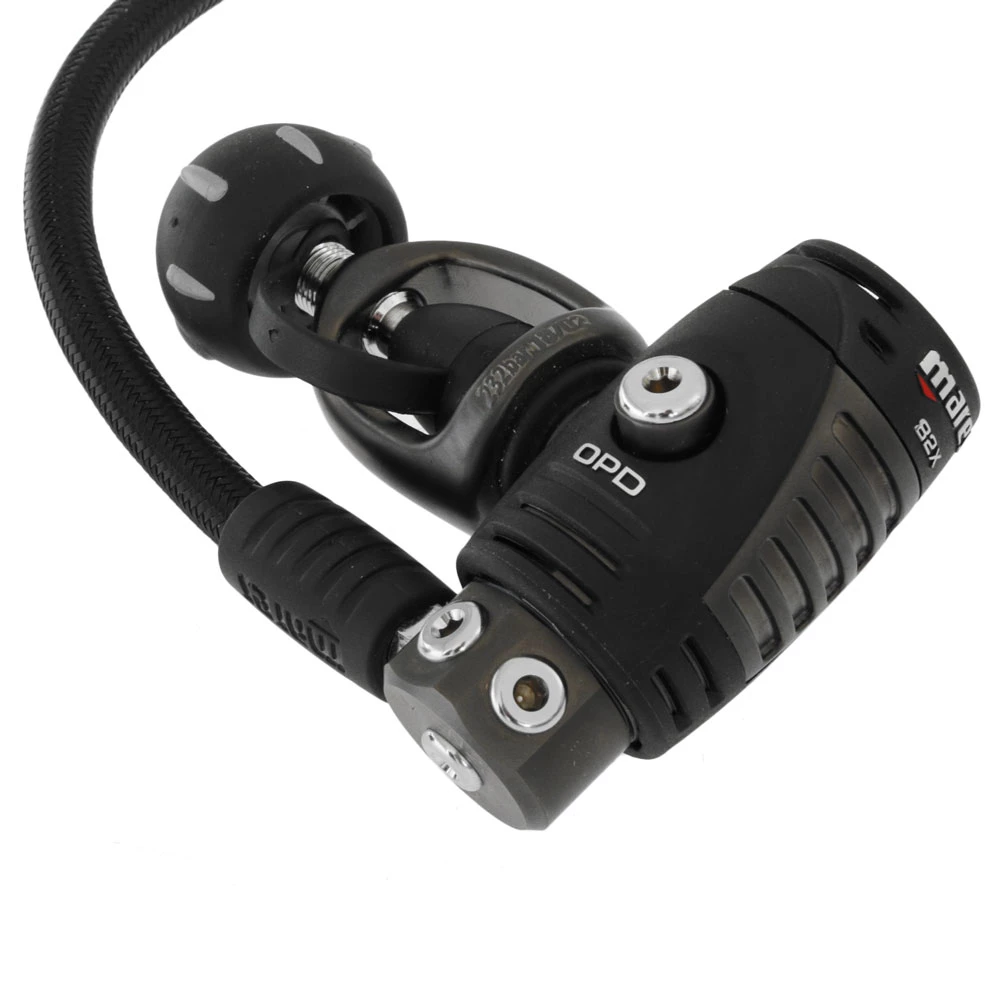

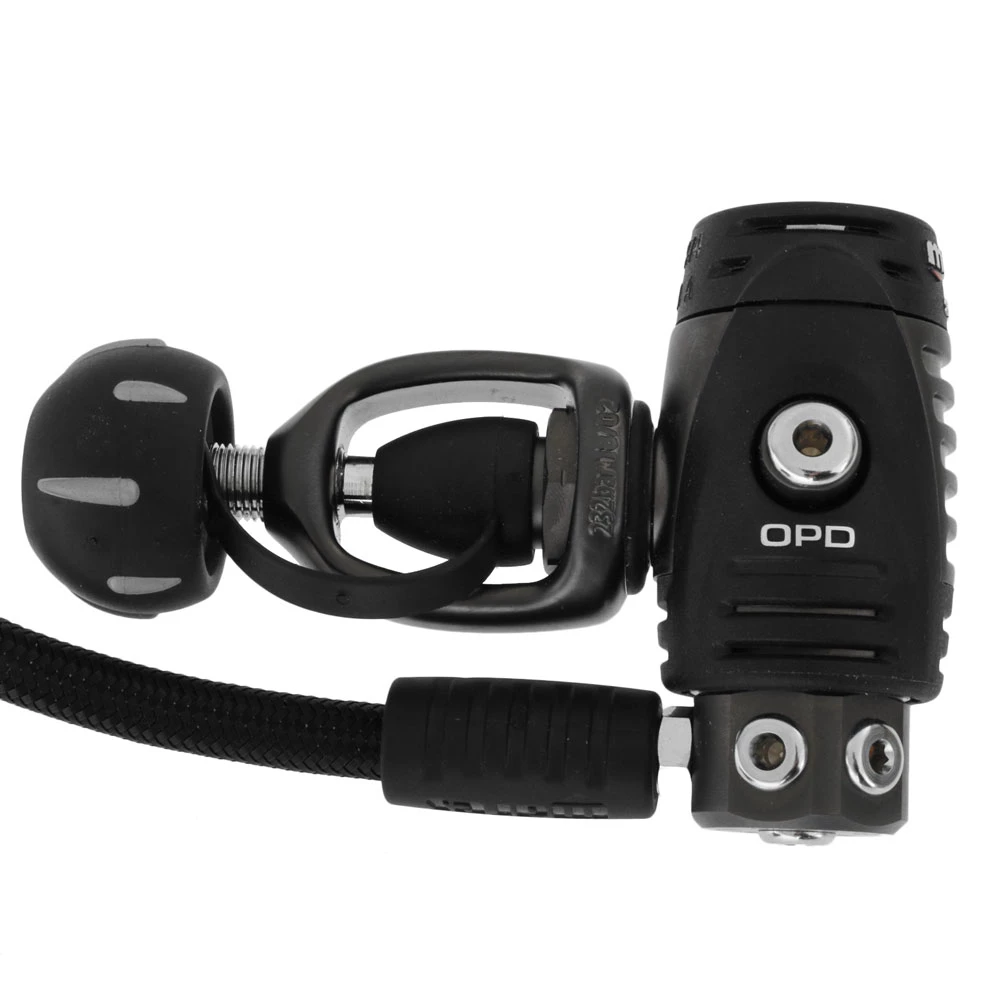

1^st stage

• PVD coating
• Swivel turret
• Natural DFC on all lp ports
• Tilted HP ports
• AST – 1st stage dry system
• Compact dimensions

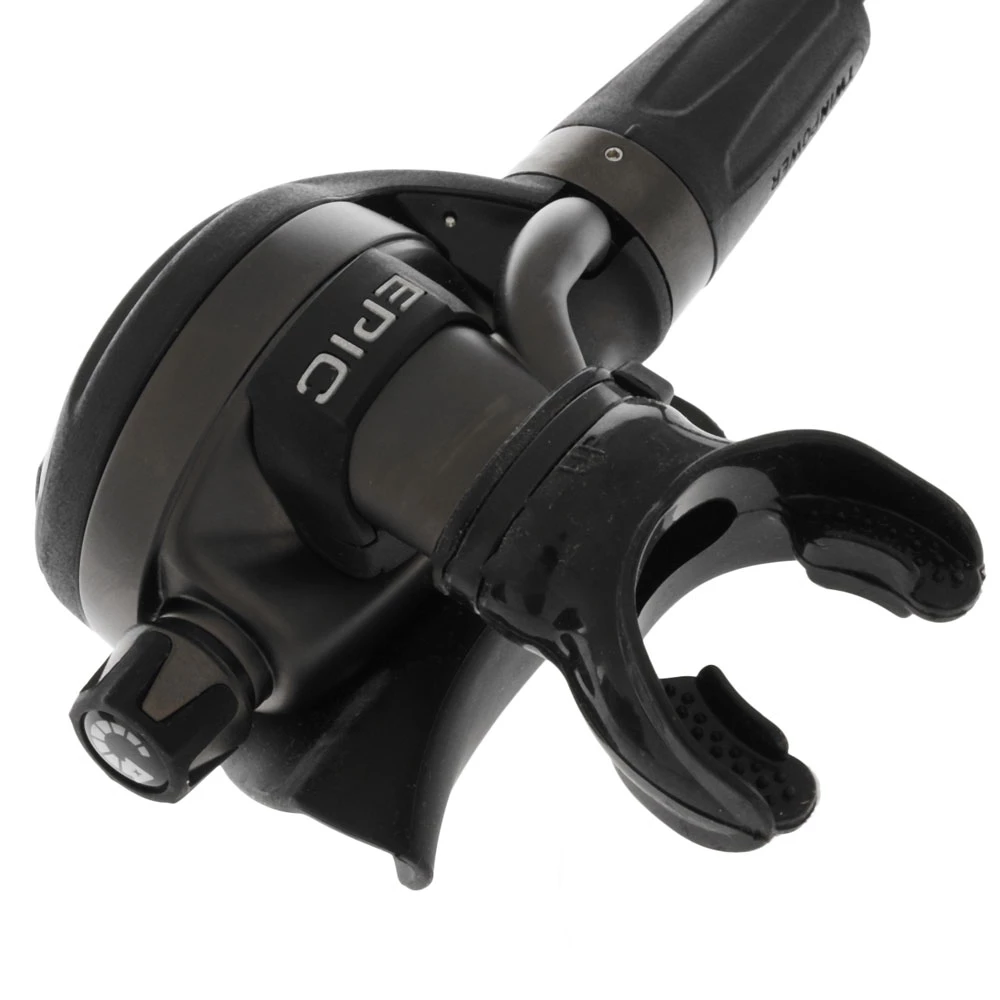

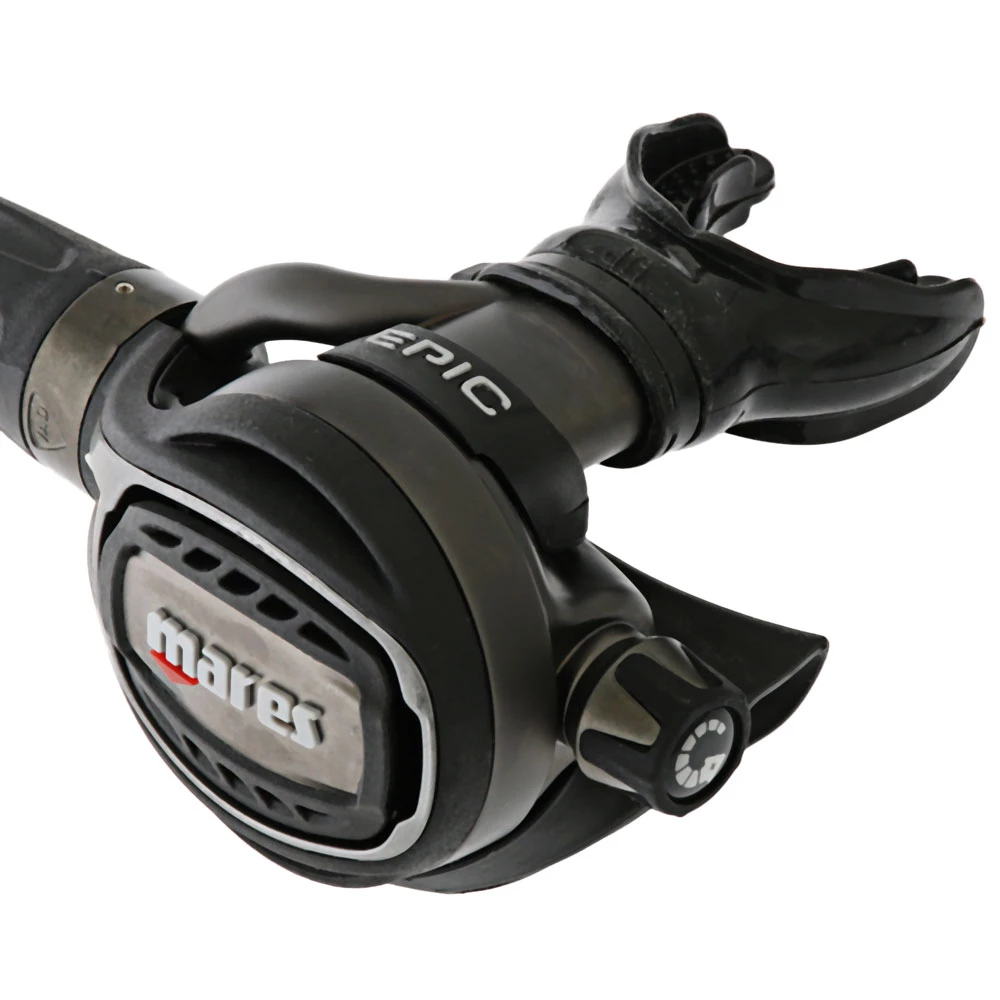

2^nd stage

• Metal 2nd stage with PVD coating
• Twin power system
• Adjustable breathing comfort
• P.A.D. – pneumatically assisted design
• High air flow
• Wide pivoting purge button
• Cold water use
• Superflex hose
• Achieved en250 work of breathing requirements at the depth of
  200 m at a breathing rate of 62,5 l/min while using a breathing mix
  of 6,7% oxygen, 83,3% helium and 10% nitrogen. this gas mixture has
  a density at 200m equivalent to the density of air at 50m

Mares Epic Adj 82X INT Dive Regulator
Specifications:

• Material: Metal Technology
• First stage: Balanced Diaphragm
• Lightweight yoke: Yes
• High pressure ports: 2 HP 7/16″ UNF
• Low pressure ports: 5 LP 3/8″ UNF
• INT First Stage Weight: 964g
• DIN First Stage Weight: 790g
• INT Second stage weight (g): 329g
• DIN Second stage weight (g): 329g
• NX Second stage weight (g): 329g
• INT Total Weight (including hose): 1429g
• DIN Total Weight (including hose): 1255g
