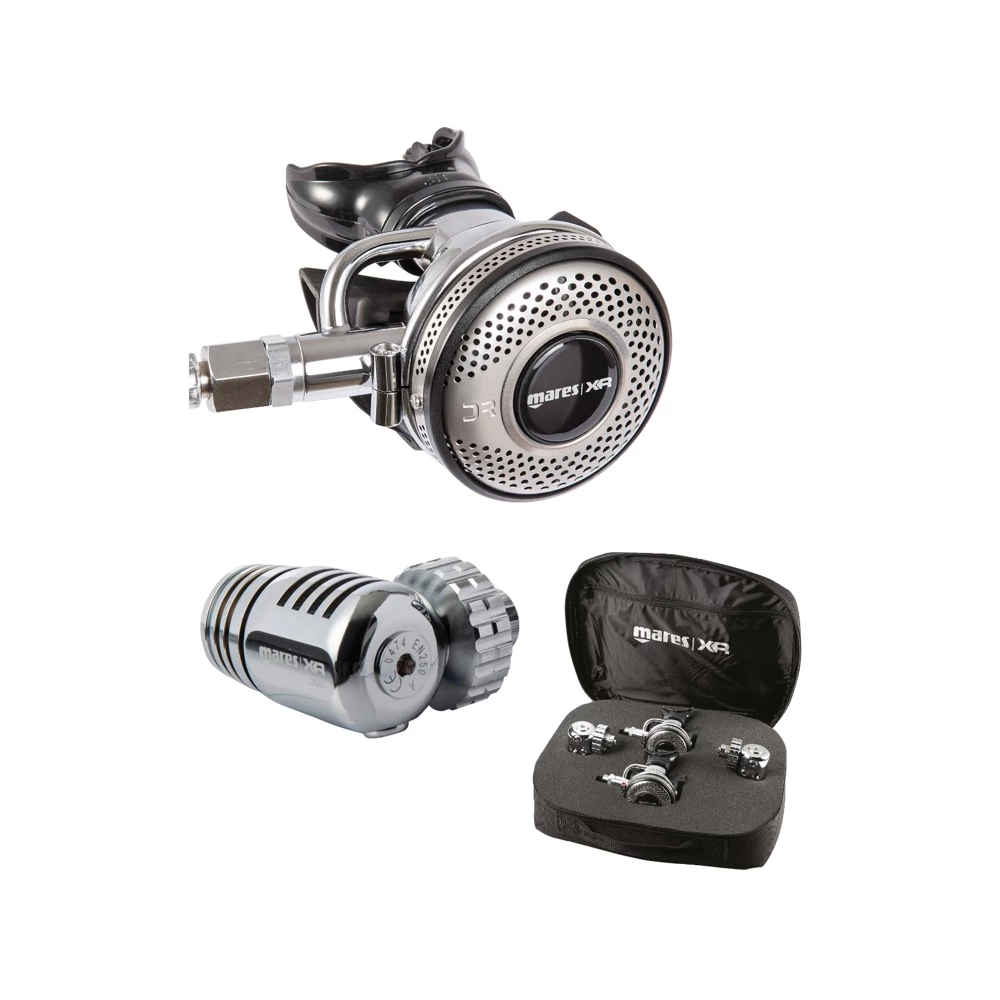

Mares 25XR DR Regulator Full Tek Set

ACT Valve – Advanced Coating Technology
Advanced Coating Technology

The new valve in the X systems increases durability by an astounding 600%, even under the most extreme conditions.

All Metal Technology

Outstanding mechanical reliability and high thermal conductivity make Mares’s metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces also the dry mouth feeling during the dive.

VAD – Vortex Assisted Design

The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.

DFC – Dynamic Flow Control

Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.

Features:

• High-Performance Second Stage
• Mesh Grid
• Stable Flow Without Excessive Positive-Pressure Breathing (Vad – Vortex Assisted Design)
• No Need For User Adjustments
• Compact And Rugged All-Metal Body Made From High-Impact Chrome And Nickel-Plated Brass
• Slightly Negatively Buoyant
• Strong And Resistant, Ideal For Scootering, Deep, Cold And Wreck Diving
• Cover Design Disperses Water Flow And Reduces Free Flow (Mesh Grid Design)
• Easy-To-Push Purge
• Carbon/Titanium Pu Coated Miflex Hose:
• Stronger Resistance To Cuts, Abrasions, Bursting And Uv Less Floating
• Environmentally Sealed
• Flexible And Comfortable
• Achieved Norsok U-101 Work Of Breathing Requirements At The Depth Of 200 M At A Breathing Rate Of 62,5 L/Min While Using A Breathing Mix Of 3% Oxygen In Helium (As Per Norsok U-101).

Specifications:

Code:	416402
Material:	Metal Technology
First stage:	Balanced Diaphragm
Oil/Dry cold water kit:	Yes
High pressure ports:	1 [7/16′ UNF]
Low pressure ports:	2 [3/8′ UNF]
Second Stage 1:	All-metal (nickel and chrome plated brass) second stage
Second Stage 2:	Standard downstream valve
Flow Rate:	620l/m – 22ft/min
Weight (without hose):	269g / 9.6oz
Hose length:	60cm / 24in – 210cm / 7ft

Additional Specifications:

	INT	DIN	NX
First Stage Weight:		758g / 27oz
Second stage weight (g):	269g / 9.6oz	269g / 9.6oz	269g / 9.6oz
